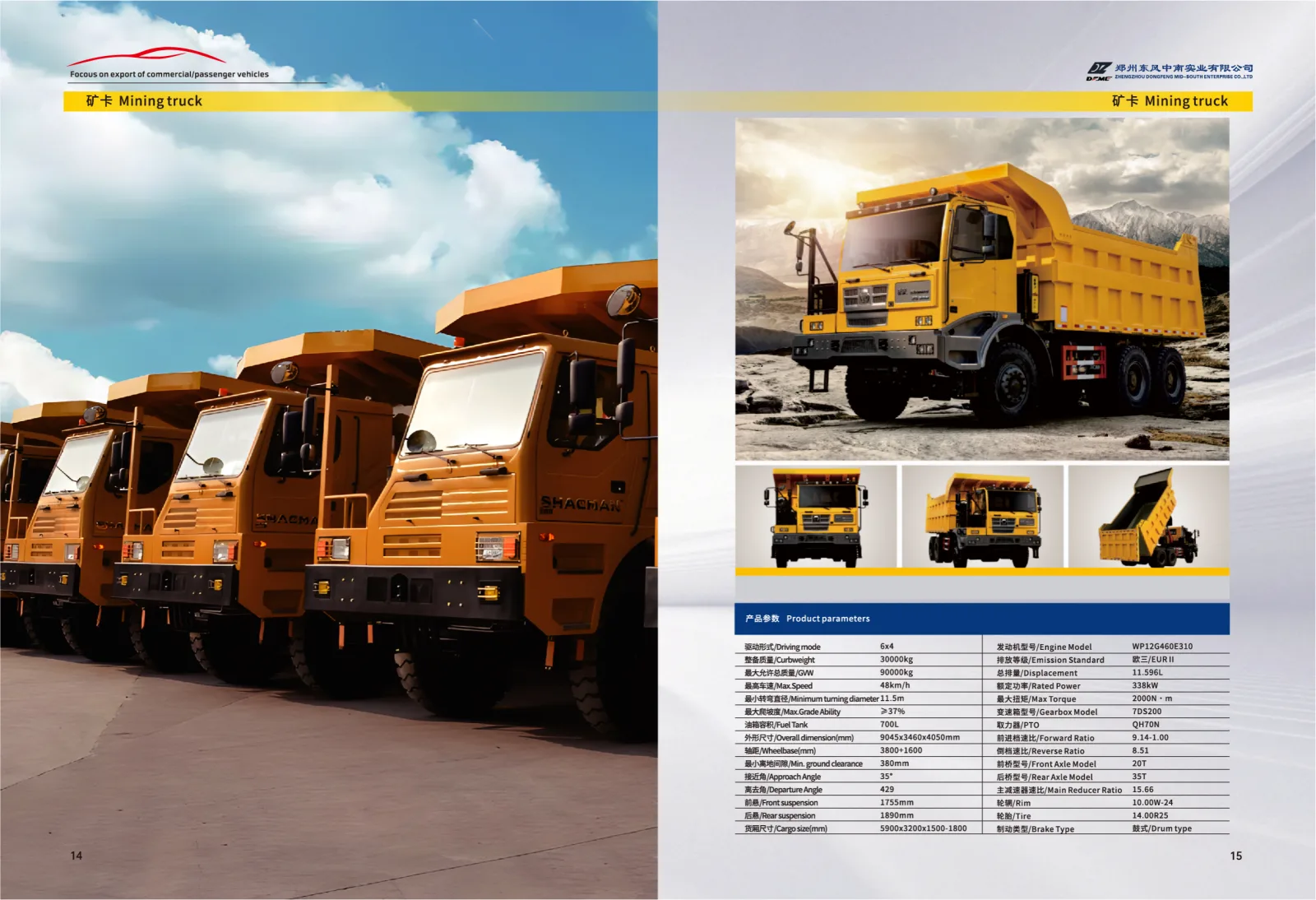

SHACMAN Mining Truck 6x4
Heavy-duty mining dump truck designed for off-road mineral extraction and transport. Features robust construction with large cargo capacity for demanding mining operations.
- Driving Mode6x4
- Curb Weight30000kg
- GVW80000kg
- Max Speed88km/h
- Maximum Gradeability46%
- Max Grade Ability37%
- Fuel Tank750L
- Overall Dimensions9045x3460x4050mm
- Wheelbase3800+1600
- Min. Ground Clearance380mm
- Approach Angle35°
- Departure Angle42°
- Front Suspension1735mm
- Rear Suspension1890mm
- Cargo Dimensions5900x3200x1500-1800
- Engine ModelWP12G460E310
- Emission StandardEuro II
- Displacement11.596L
- Rated Power338kW
- Max Torque1600N.m
- Gearbox ModelT2S300
- Gearbox TypeQH70N
- Forward Ratio9.14-1.00
- Reverse Ratio8.51
- Front Axle Model20T
- Rear Axle Model35T
- Main Reducer Ratio15.66
- Tire10.00W-24
- Tire Size14.00R25
- Brake TypeDrum type
